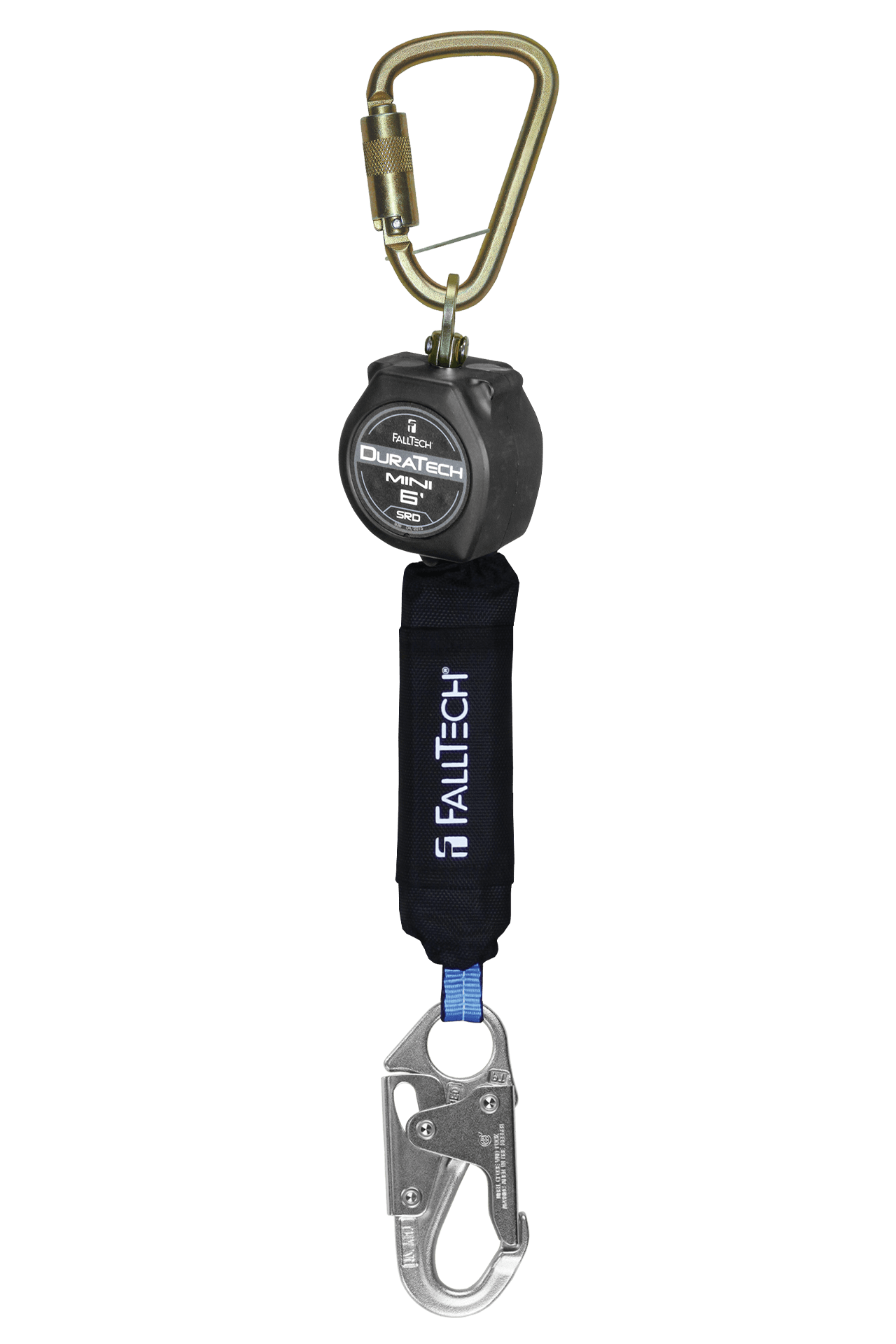

When every ounce counts, the DuraTech Mini SRL delivers big protection in a compact package. With impact-resistant housing, a high-strength Dyneema� lifeline, and a ViewPack� energy absorber for smooth deceleration, the DuraTech Mini gives you the protection you can count on, without breaking the bank.
Features
- Features internal locking pawls and ViewPack� external energy absorber for even deceleration
- Long-wearing Dyneema� web lifeline resists abrasion while providing trusted strength.
- Nylon housing provides impact resistance in most worksite conditions
- Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation
- Features alloy steel snap hook anchorage connector
- Includes alloy steel dorsal connecting carabiner
- May be anchored up to 5' below the dorsal D-ring with no edge hazards for user's weighing up to 310 lb max.
- Complies with ANSI Z359.14-2021 Class 1 SRL-P. <a href="https://www.falltech.com/blog/industry-news-updates/what-you-should-know-to-comply-with-the-updated-srd-standard">Learn more and download White Paper</a>
Specifications
- Configuration: Class 1 Personal SRL-P
- Steel Snap Hook
- Dyneema� Web Lifeline
- Webbing: Dyneema�/Polyester blend; 4,500 lb min.
- Energy Absorber: Polyester tear-away
- Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Dorsal Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Static Strength: 3,600 lb min.
- ANSI SRL Class/Type: Class 1 SRL-P
- Avg. Arrest Force: 900 lb
- Max. Arrest Force: 1,800 lb
- Max. Arrest Distance: 42"
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 310 lb max.
- SRL ANSI Class: 1
- SRL Length: 6'
- Weight: 3.47 lb
Standards & Compliance
- ANSI Z359.14-2021
- OSHA 1926.502 and 1910.66
- CSA Z259.2.2-2017
- ANSI Class 1 SRL-P Compliant
- OSHA Compliant
- CSA Compliant
Resources
