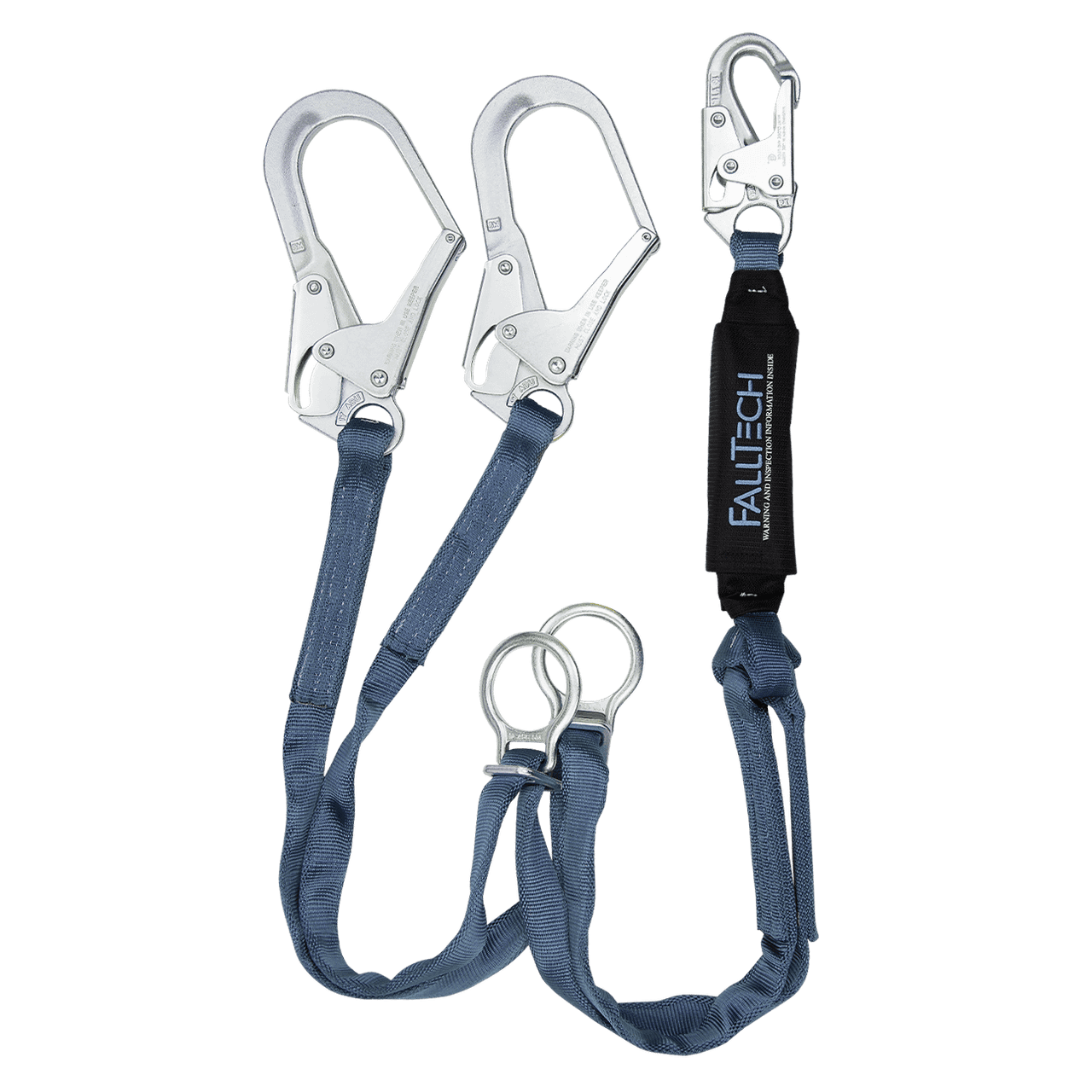

Designed for wrap-around anchoring applications, this tie-back lanyard eliminates the need for separate anchorage connectors while supporting continuous tie-off and simplified inspection through the integrated ViewPack window.
Features
- Constructed with jacketed double-layer polyester webbing for added strength and abrasion resistance
- Features Tie-back D-rings for wrap-around anchoring and eliminates the need for a separate tie-off anchor point.
- Energy absorber features patented ViewPack� cover with inspection window
- ViewPack� cover also features WrapPack label protection
- Includes alloy steel snap hook for harness attachment and rebar hooks for anchorage connections
- Double-leg design facilitates 100% tie-off
- Rebar hooks feature transverse load rated gates
- Complies with ANSI Z359.13-2013
Specifications
- Configuration: External Energy Absorbing Lanyard
- Steel Rebar Hooks
- Double-leg
- Webbing: Polyester; 5,000 lb min. static strength
- Energy Absorber: Polyester tear-away
- Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- D-rings: Plated alloy steel; 5,000 lb min. static strength
- Static Strength: 5,000 lb min.
- ANSI Lanyard Class: 6' free fall
- Max. Arrest Distance: 48"
- Avg. Arrest Force: 900 lb
- Max. Arrest Force: 1,800 lb
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 310 lb max.
- Energy Absorber Type: External
- Lanyard Length: 6'
- Weight: 7 lb
Standards & Compliance
- ANSI Z359.13-2013
- OSHA 1926.502 and 1910.66
- CSA Z259.11-2017
- ANSI Compliant
- OSHA Compliant
- CSA Compliant
