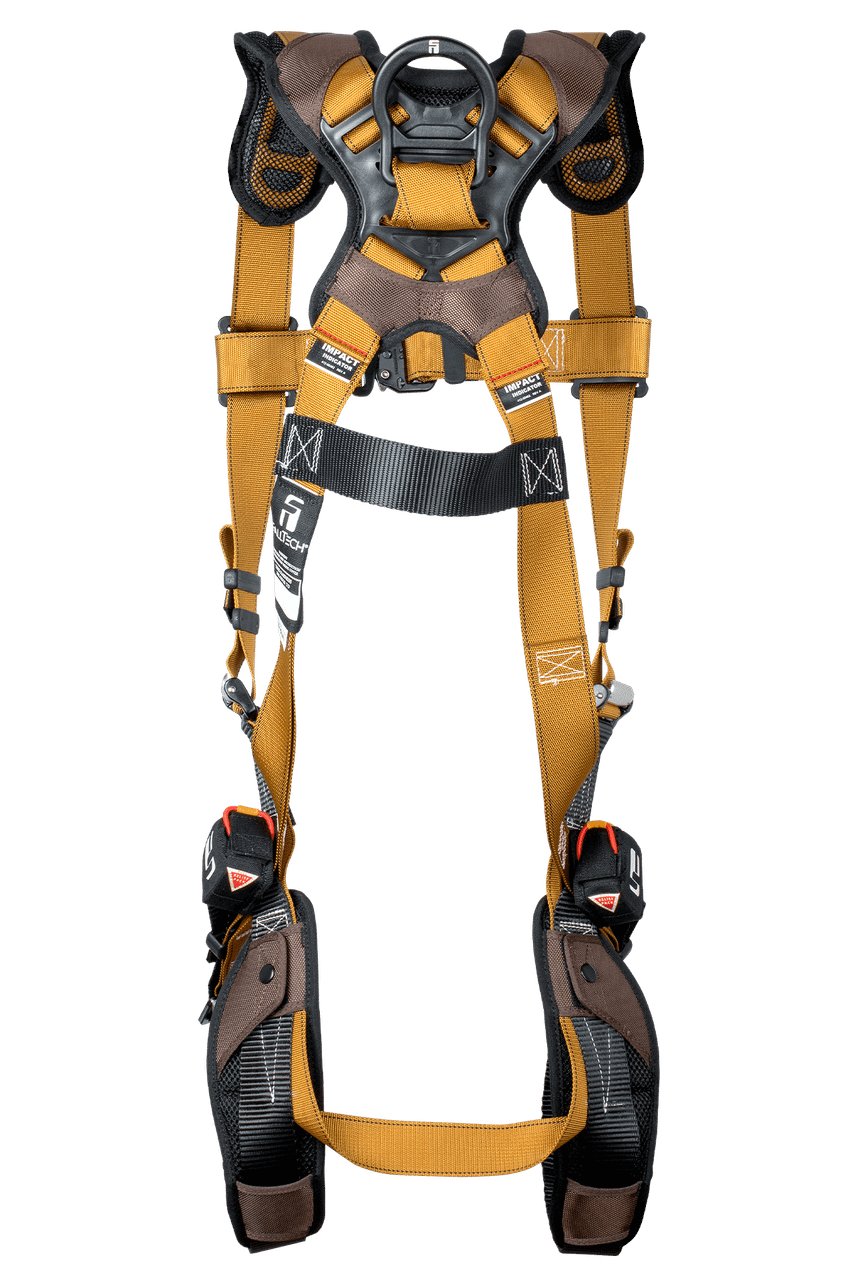

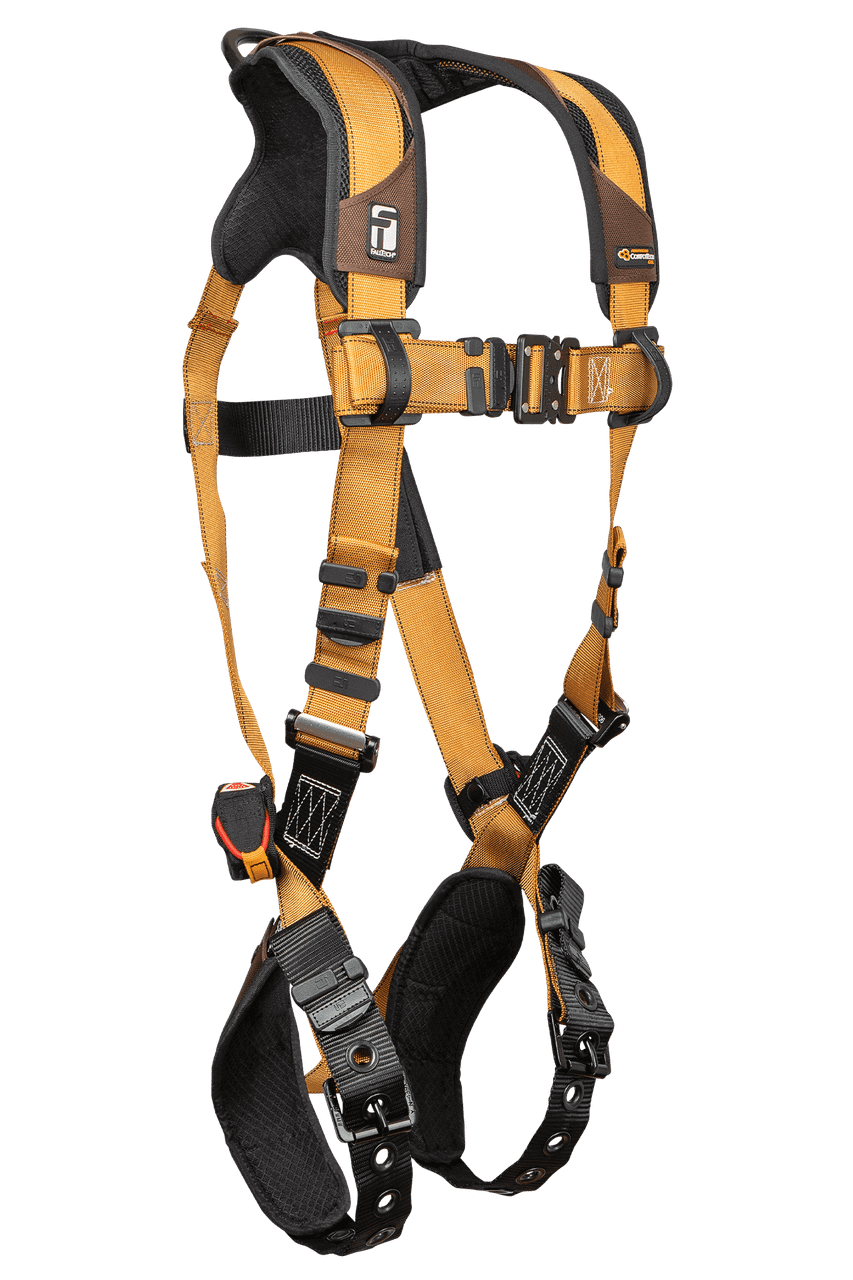

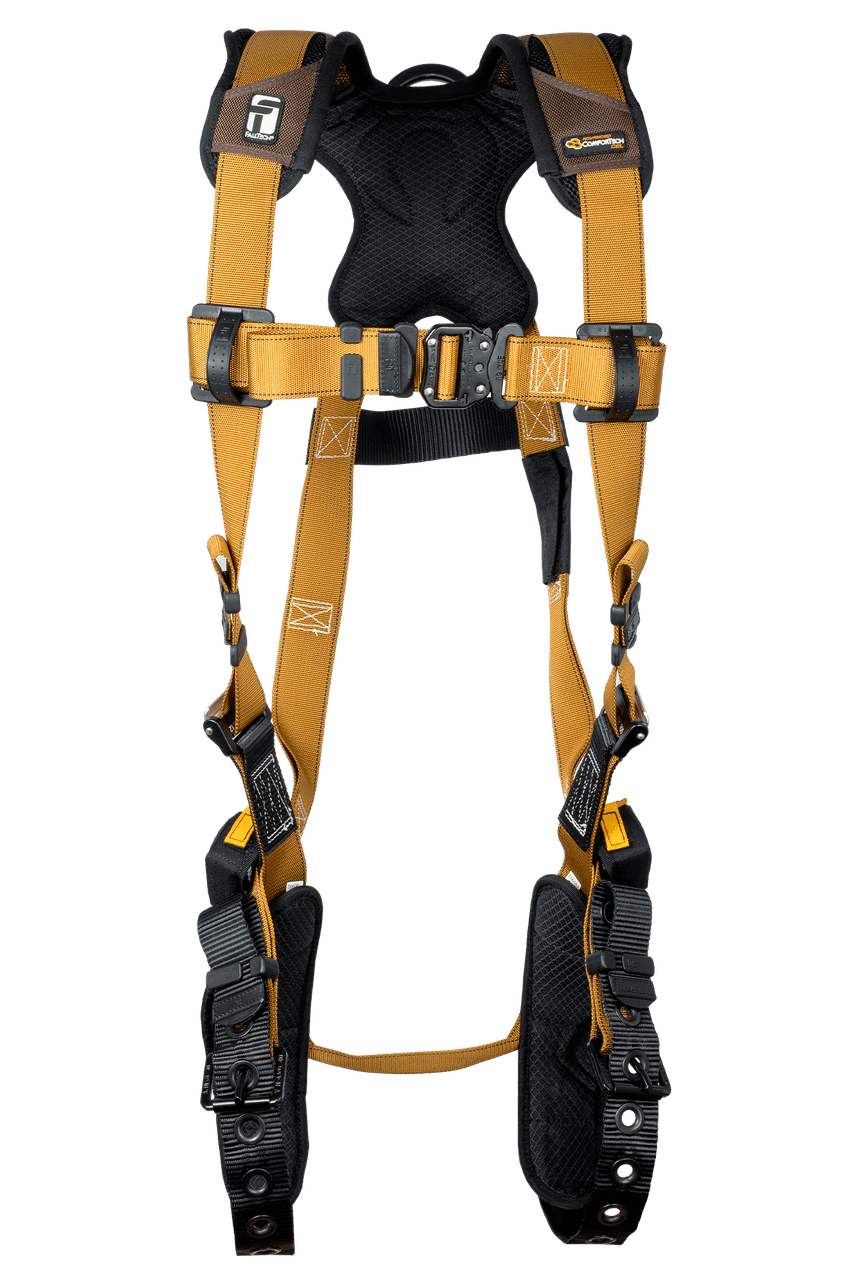

Built for comfort and dependable performance, this full-body harness combines proprietary gel padding with lightweight aluminum hardware to help reduce fatigue during long hours of work at height.
Features
- Shoulder yoke and sub-pelvic leg pads feature exclusive gel endoskeleton for unsurpassed user comfort.
- Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.
- Exclusive aluminum camlock torso adjusters provide simple and secure upper-body fit
- Features lightweight forged aluminum alloy dorsal D-ring
- Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
- Quick-connect chest buckle features visual indicator showing positive connection
- Includes fully adjustable suspension trauma relief system
- Complies with ANSI Z359.11-2014
Specifications
- Configuration: Non-Belted Full Body Harness
- 1 D-Ring: Dorsal
- Tongue Buckle Leg Adjustment
- Webbing: Polyester; 5,000 lb min. static strength
- D-ring: Aluminum alloy; 5,000 lb min. static strength
- Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb min. static strength
- Static Strength: 3,600 lb min.
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 425 lb max.
- D-Rings: 1
- Leg Connection: TB
- Weight: 4 lb
Standards & Compliance
- ANSI Z359.11-2014
- OSHA 1926.502 and 1910.140
- CSA Z259.10-2018
- ANSI Compliant
- OSHA Compliant
- CSA Compliant
