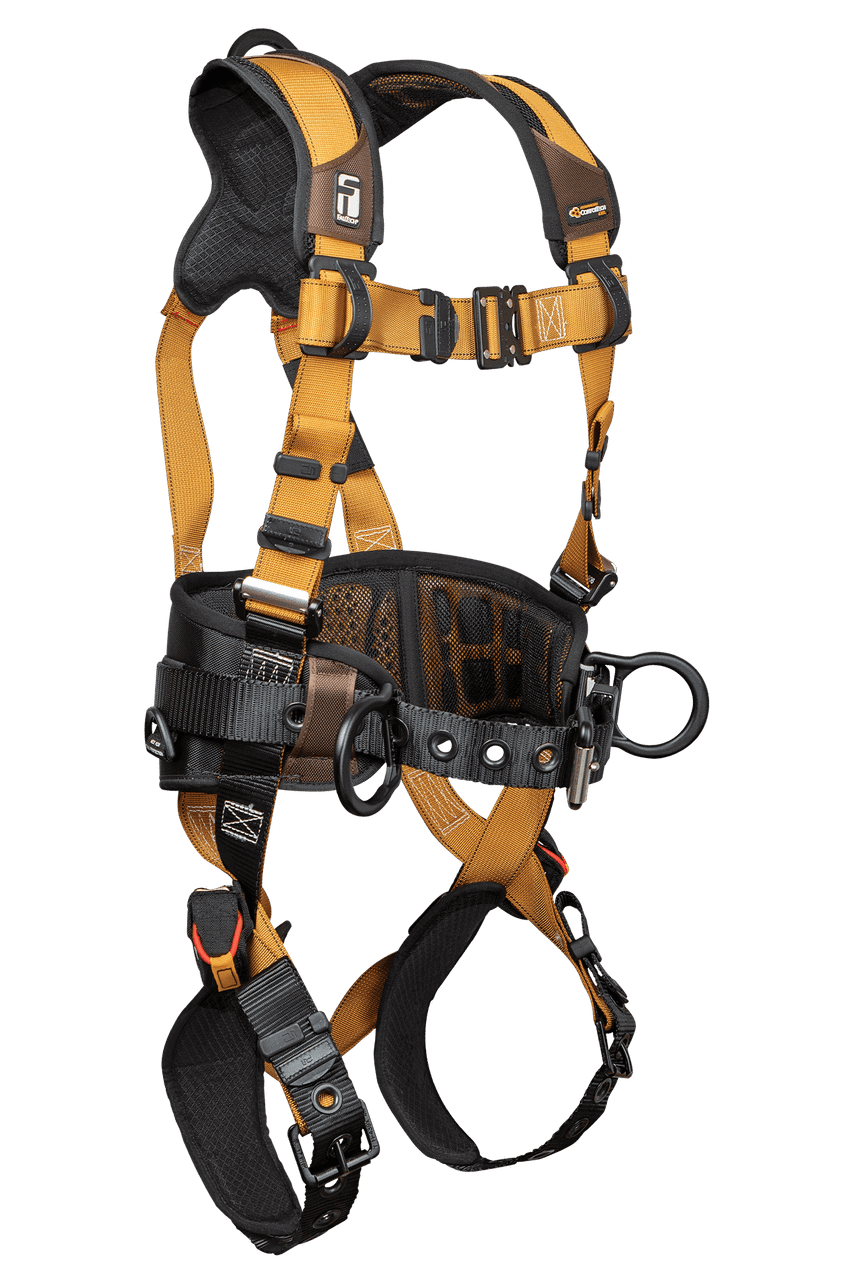

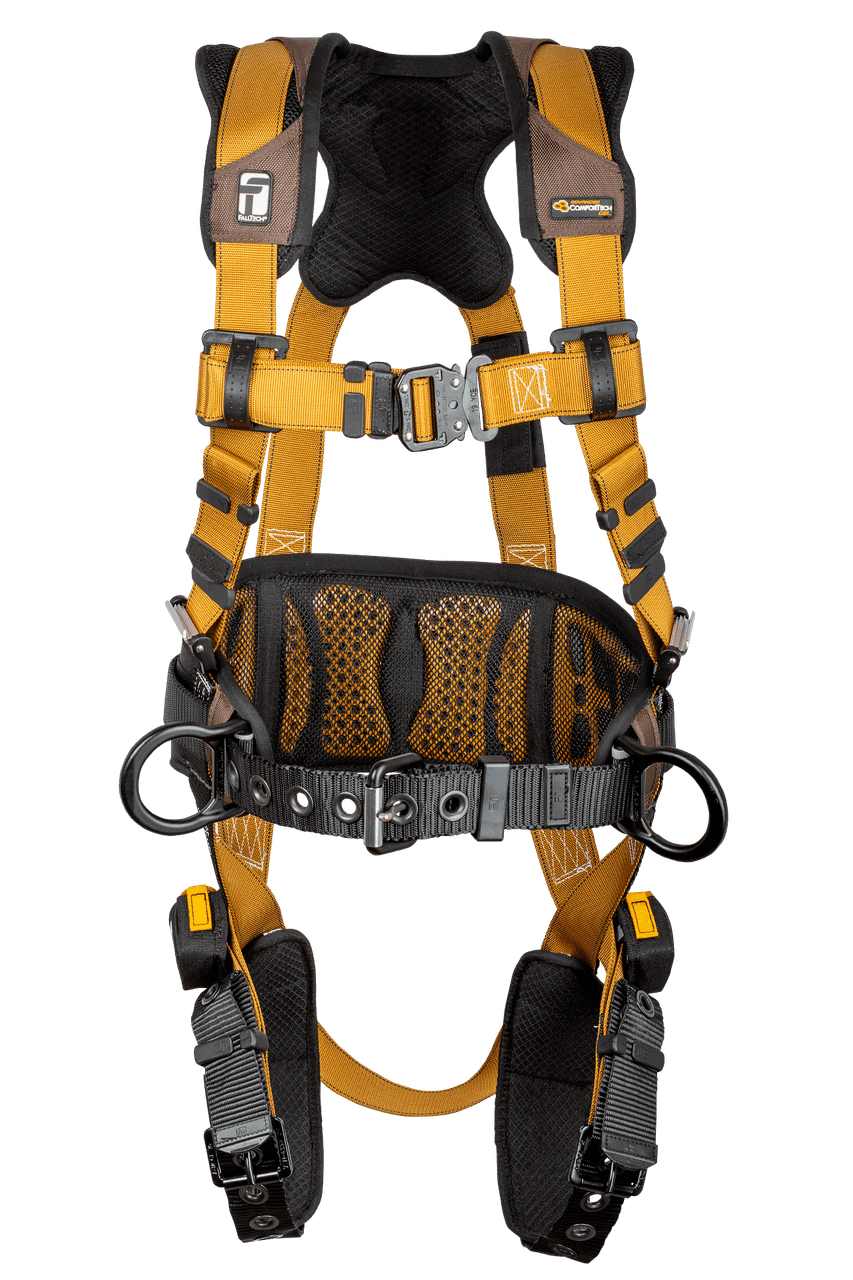

Built for comfort and dependable performance, this full-body harness combines proprietary gel padding with lightweight aluminum hardware to help reduce fatigue during long hours of work at height.
Features

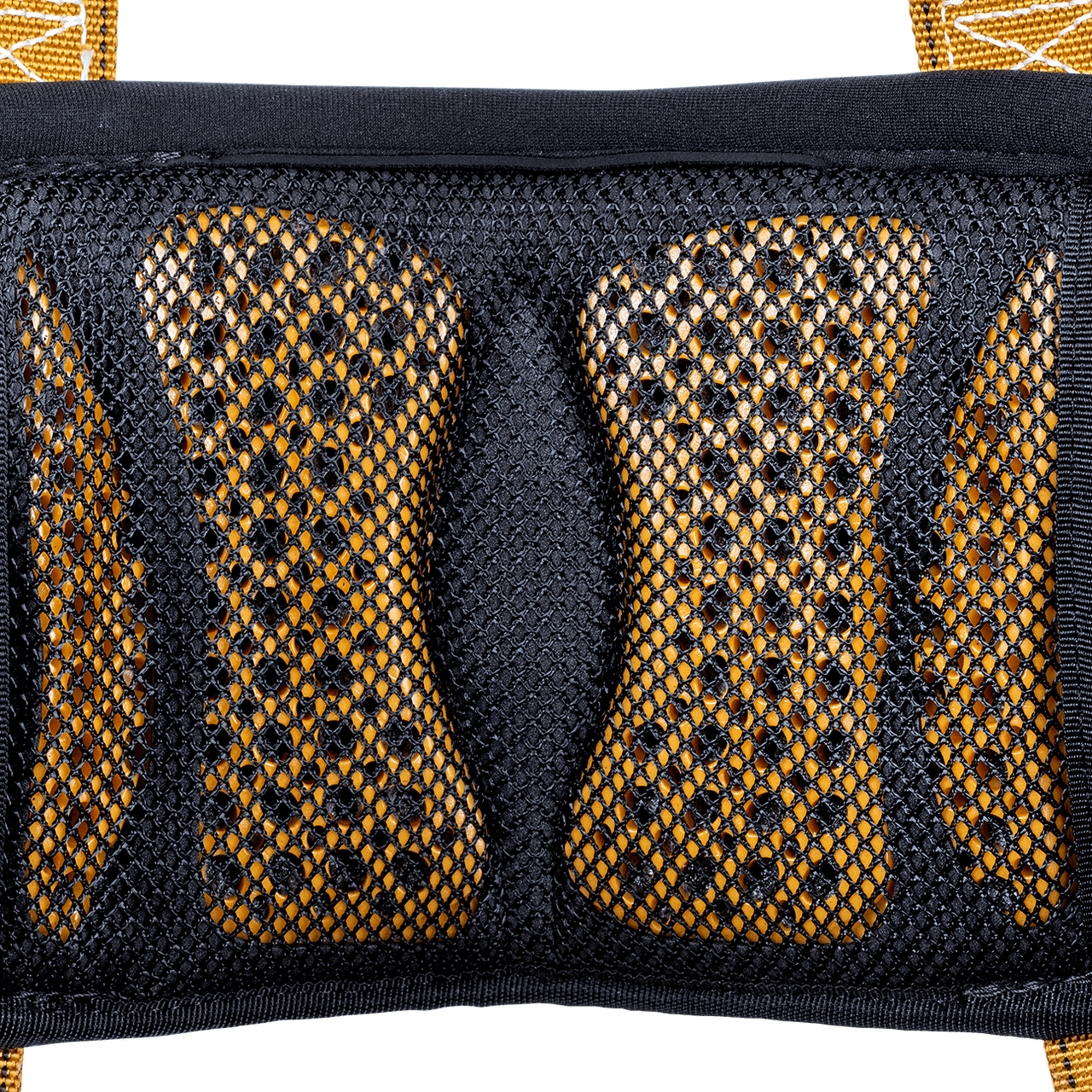

- Shoulder yoke, sub-pelvic leg, and 6" waist support positioning pads feature exclusive gel endoskeleton for unsurpassed user comfort
- Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.

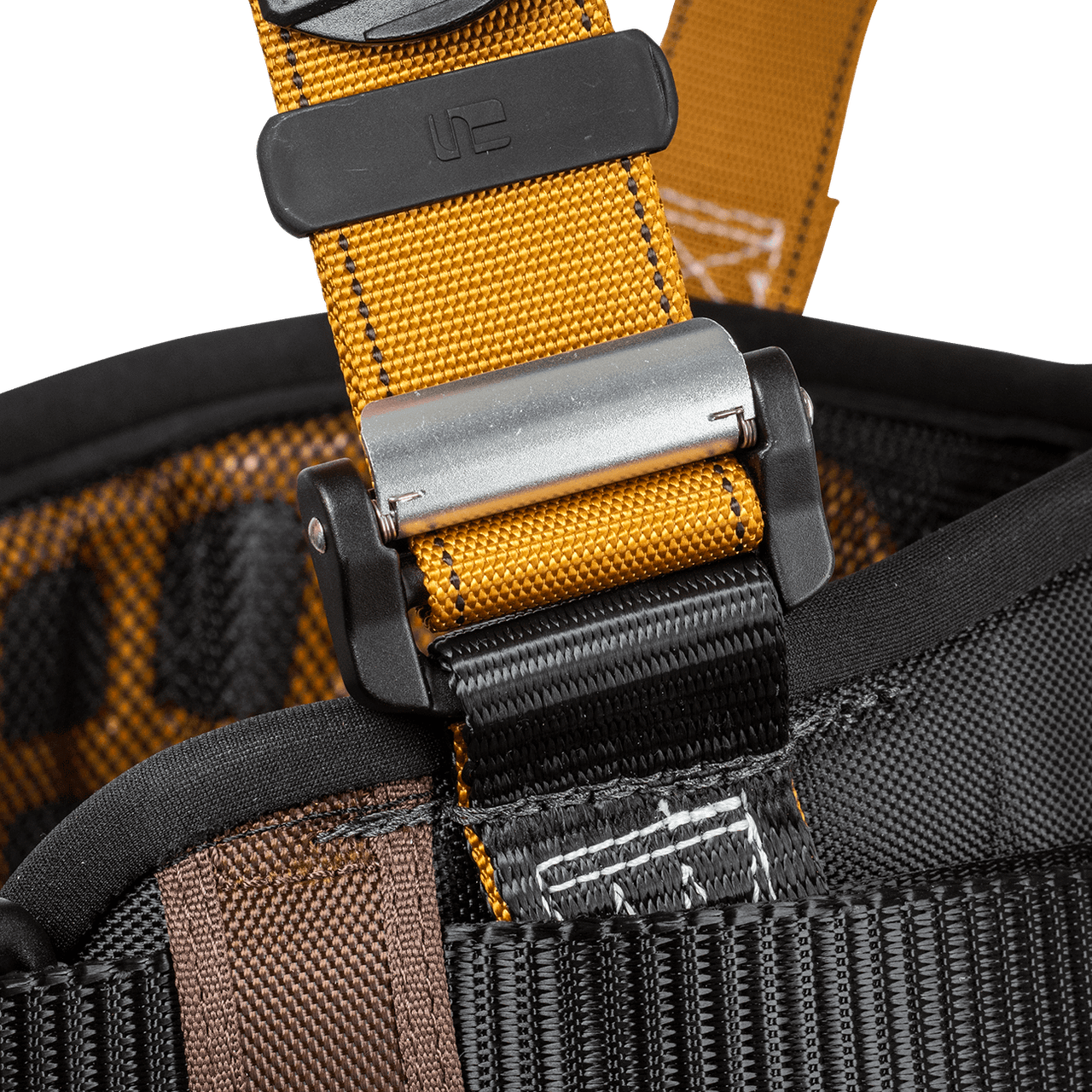

- Exclusive aluminum camlock torso adjusters provide simple and secure upper-body fit

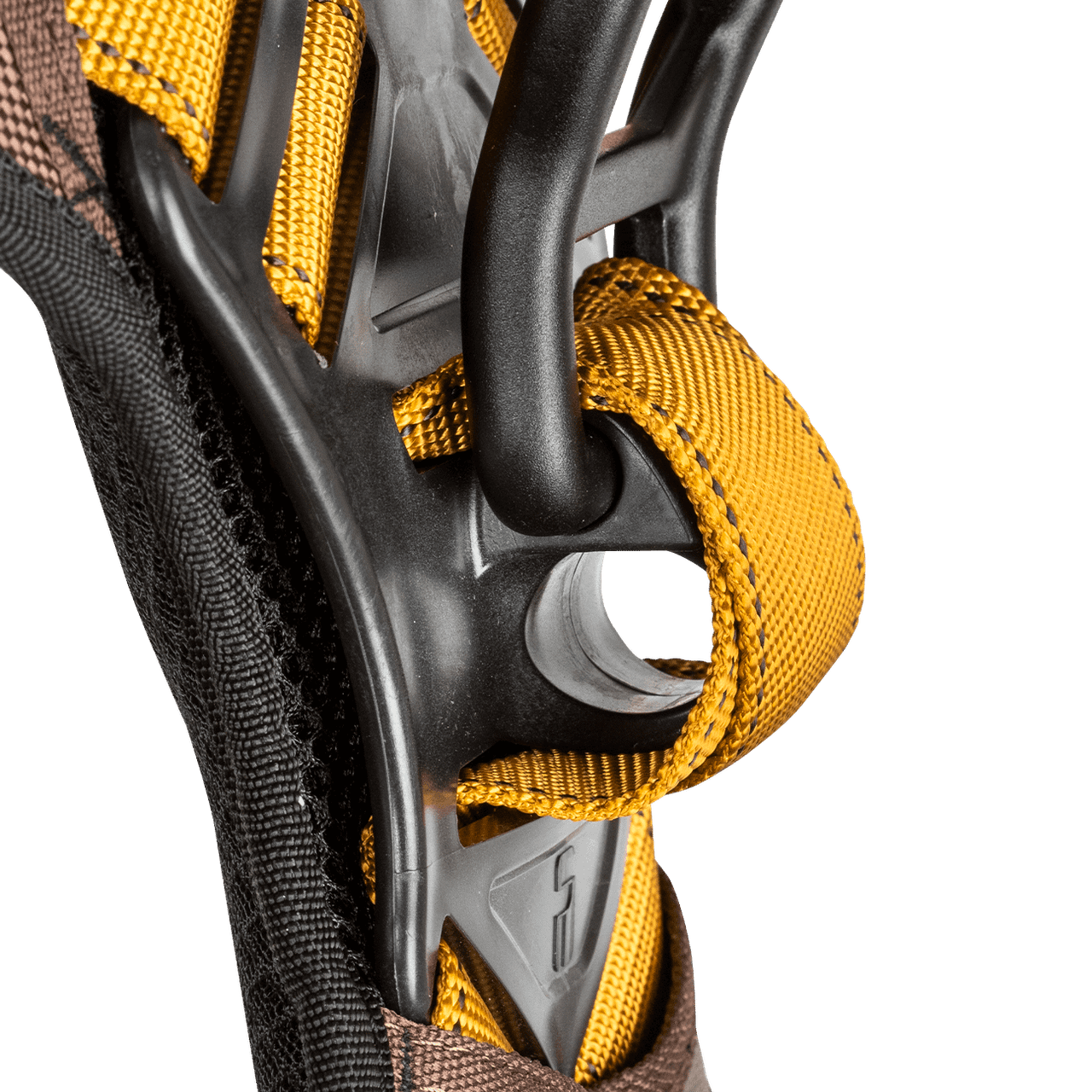

- Features lightweight forged aluminum alloy dorsal and hip D-rings
- Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
- Quick-connect chest buckle features visual indicator showing positive connection
- Includes fully adjustable suspension trauma relief system
- Waist support pad features paired tool tether connection rings for tools weighing up to 5 lb
- Complies with ANSI Z359.11-2014
Specifications
- Configuration: Non-Belted Full Body Harness
- 3 D-Rings: Dorsal, Hip
- Tongue Buckle Leg Adjustment
- Webbing: Polyester; 5,000 lb min. static strength
- D-rings: Aluminum alloy; 5,000 lb min. static strength
- Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb min. static strength
- Static Strength: 3,600 lb min.
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 425 lb max.
- D-Rings: 3
- Leg Connection: TB
- Weight: 6.3 lb
Standards & Compliance
- ANSI Z359.11-2014
- OSHA 1926.502 and 1910.140
- CSA Z59.10-2018
- ANSI Compliant
- OSHA Compliant
- CSA Compliant
