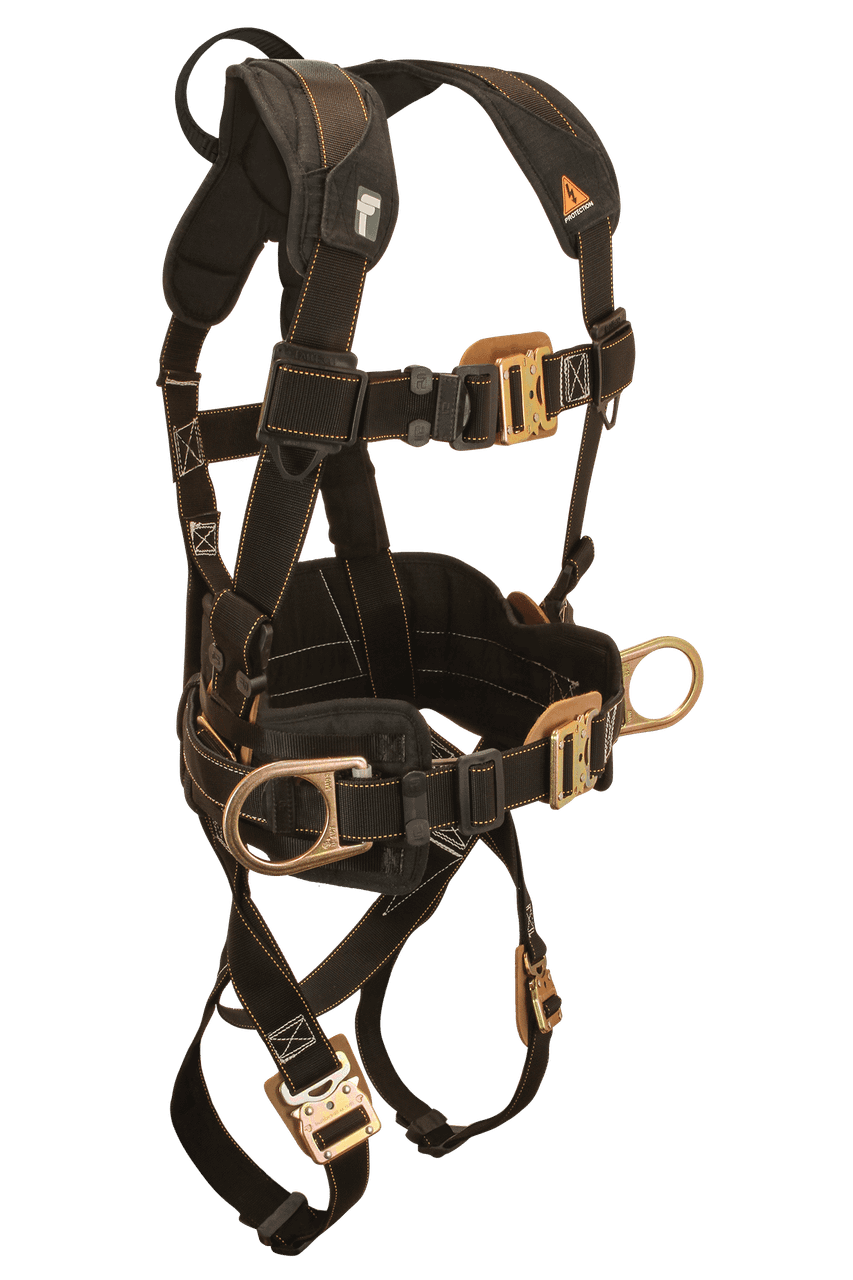

Arc Flash Construction Belted Looped Full Body Harness, Quick Connect Adjustments

Built for energized work environments, this arc flash-rated full-body harness combines durable flame-resistant materials with lightweight hardware to provide dependable protection and lasting comfort during utility and industrial work.

Features

• New wishbone shaped shoulder yoke reduces neck irratiation and improves comfort
• Features economical dielectric dorsal loop, leather insulated alloy steel hip D-rings, quick-connect leg, chest and belt buckles, and mating buckle torso adjusters
• Nylon webbing throughout shoulders, torso, belt, and legs provides economical level of arc flash resistance.
• Shoulder yoke, sub-pelvic leg, and 6" waist support positioning pads feature ripstop and quilted Nomex� fabrics for advanced Arc Flash protection
• Features 1-1/4" Nomex� dorsal loop for Fall Arrest
• Quick-connect buckles feature visual indicators showing positive connection
• Includes paired lanyard parking keepers and Nomex� label cover
• Meets ASTM F887 Standards
• Complies with ANSI Z359.11-2014

Specifications

• Configuration: Belted Full Body Harness
• 3 D-Rings: Dorsal Loop, Hip
• Quick-Connect Leg Adjustment
• Webbing: Nylon; 5,000 lb min. static strength
• D-rings: Nomex� Web Loop and Plated Alloy Steel; 5,000 lb min. static strength
• Buckles and Adjusters: Plated alloy steel; 3,372 lb min. static strength
• Static Strength: 3,600 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.
• D-Rings: 3
• Leg Connection: QC
• Weight: 5.5 lb

Standards & Compliance

• ANSI Z359.11-2014
• ASTM F887
• OSHA 1926.502 and 1910.66
• ANSI Compliant
• OSHA Compliant
• ASTM Compliant

Resources

• Product Video
