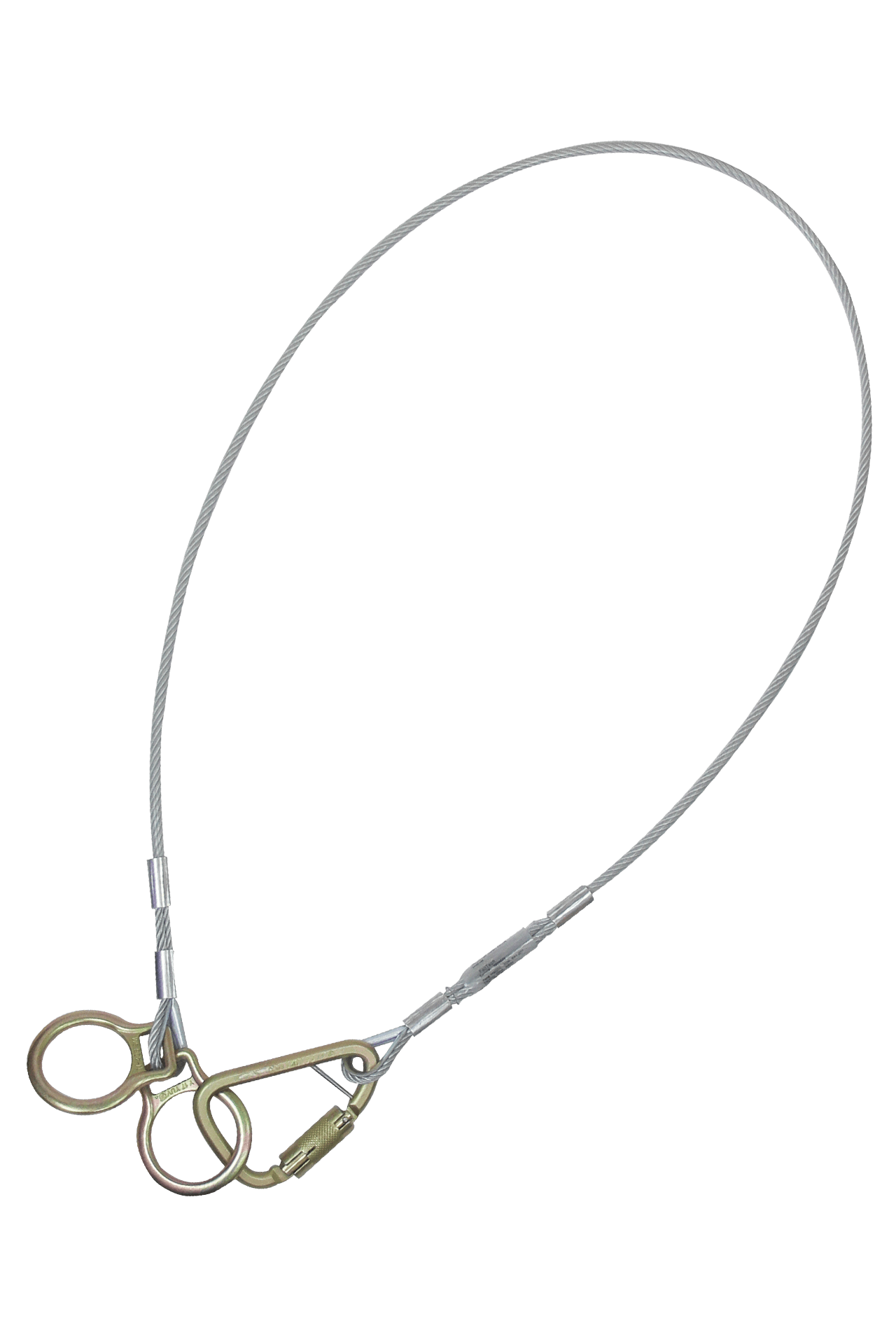

This vinyl-coated cable sling anchor delivers durable wrap-around anchorage with improved surface protection and dependable connection performance in harsh work environments.
Features
- Hard-wearing 1/4" vinyl coated galvanized steel cable tolerates demanding work environments
- Non-choking, trouble-free wrap-around and connect installation.
- Captivated carabiner and one connecting ring secure anchor to overhead structures
- Secondary connecting ring facilitates connection of SRL or lanyard
- Features plated alloy steel connecting rings and carabiner
- Assembled with steel thimbles and swaged aluminum ferrules
- Vinyl coating adds a layer of protection and provides easier clean-up
- Complies with ANSI Z359.18-2017
Specifications
- Configuration: Wrap-around Carabiner Cable Sling
- Vinyl Coated Galvanized Cable
- Temporary and reusable
- Cable: 1/4" vinyl coated galvanized steel; 5,000 lb min. static strength
- D-rings: Plated alloy steel; 5,000 lb min. static strength
- Carabiner: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Static Strength: 5,000 lb min.
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 425 lb max.
- Weight: 1.92 / 2.37 / 2.6 lb
Standards & Compliance
- ANSI Z359.18-2017
- OSHA 1926.205 and 1910.66
- ANSI Compliant
- OSHA Compliant
