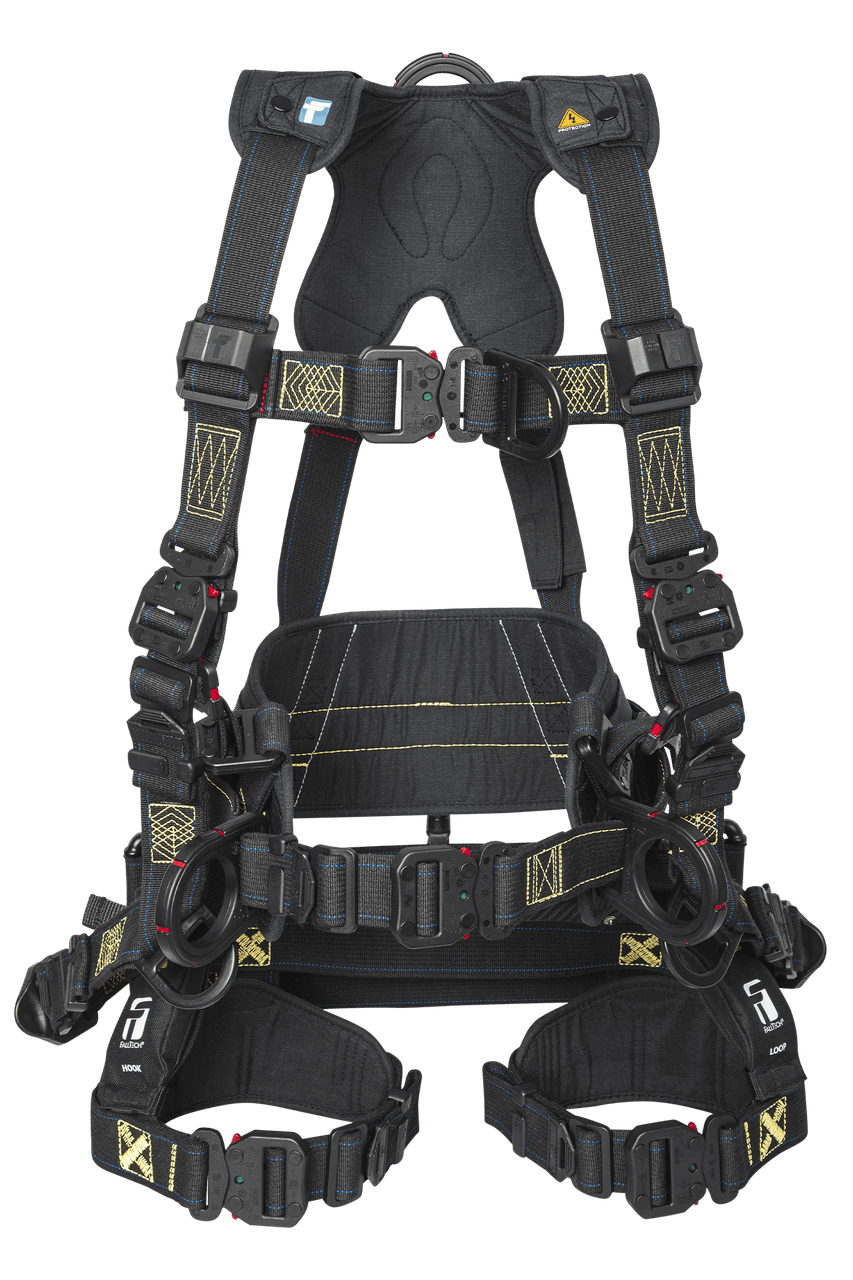

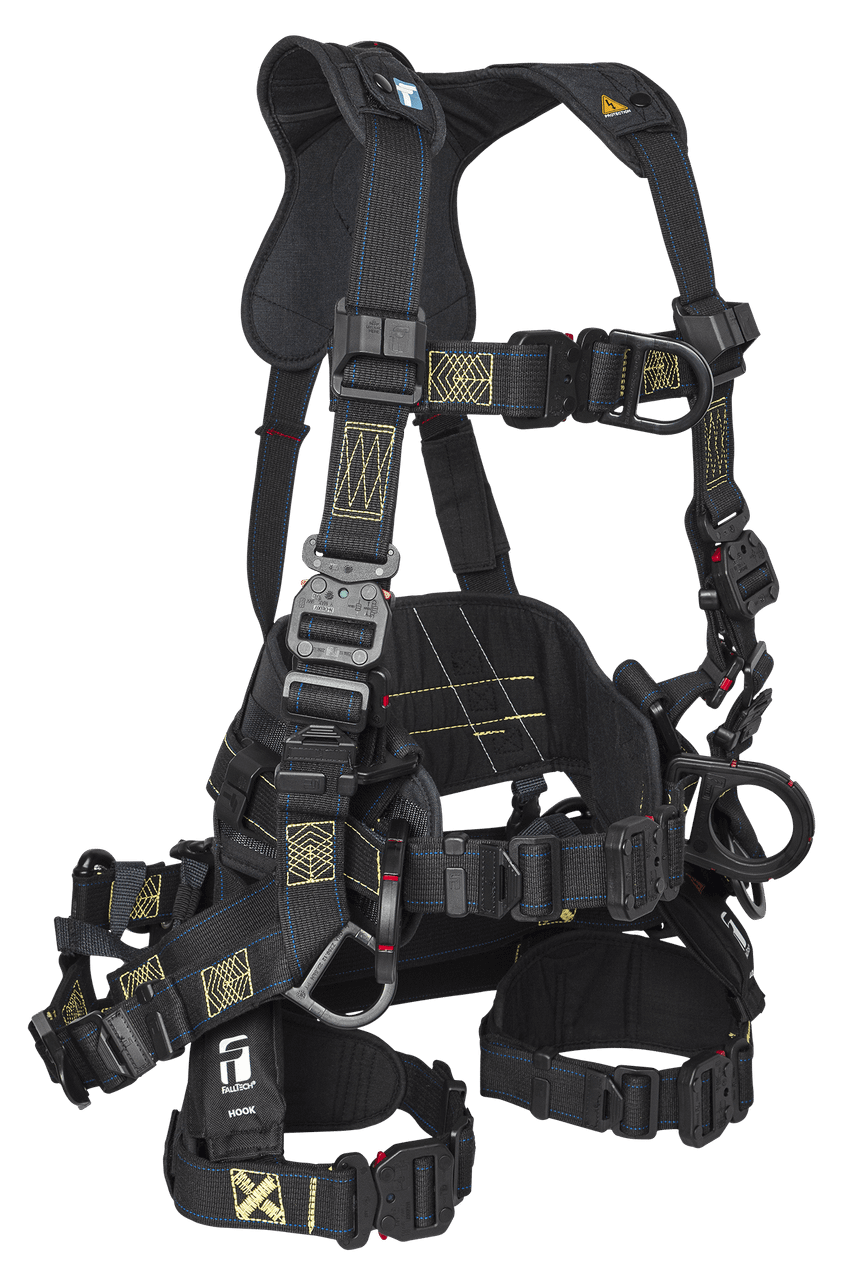

Engineered for elite utility climbing in energized environments, this premium arc flash-rated tower harness combines lightweight carbon fiber support with advanced comfort and mobility features. Reinforced Kevlar construction, Comfort Legs technology, and quick-connect hardware deliver exceptional durability, freedom of movement, and all-day performance at height.
Features

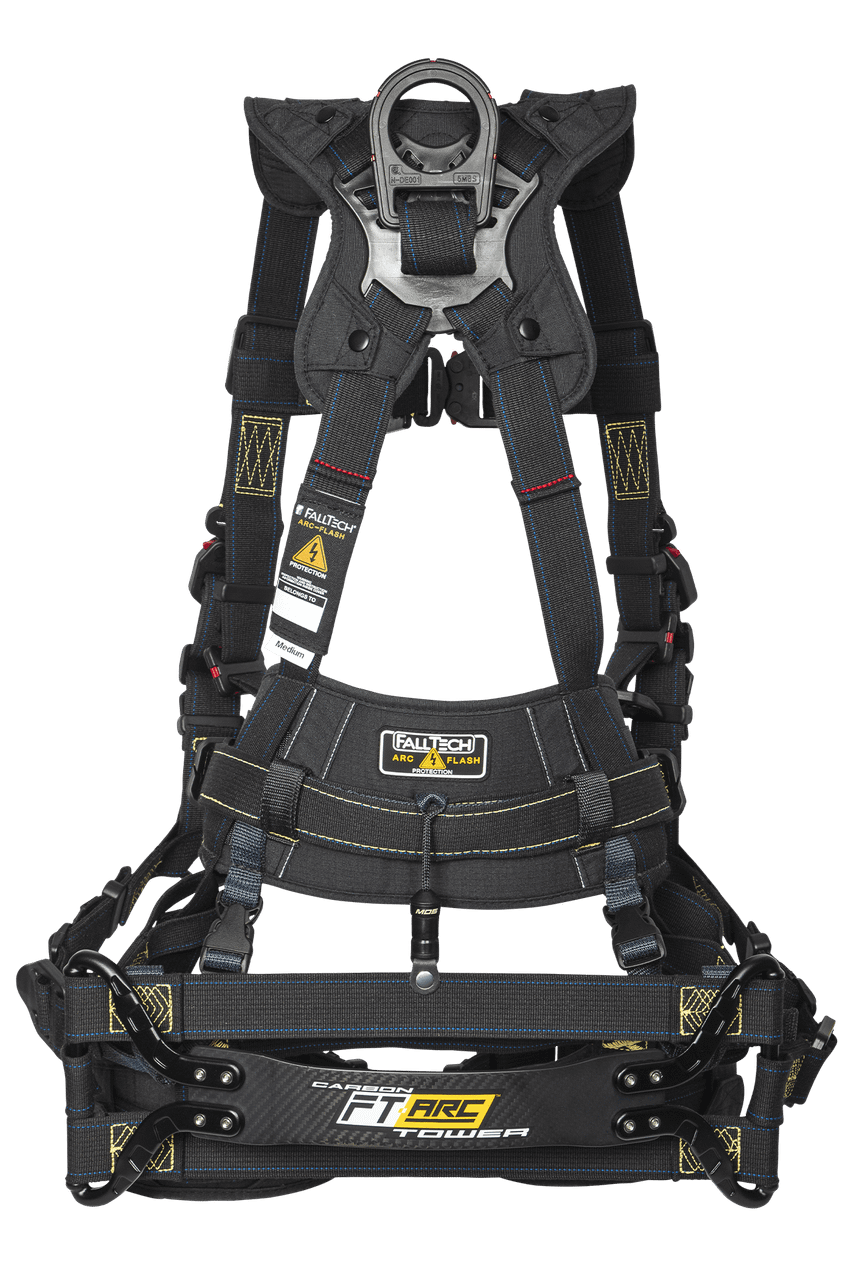

- Carbon fiber bosun seat offers lightweight, body-conforming support inspired by leaf-spring design.
- MDS� Magnetic Deployment System allows fast, one-handed bosun seat deployment and stowage.
- Heavy-duty waist belt with modular lacing and four 5-lb. ANSI-compliant tool tether anchors.
- ArrowGrip� dorsal plate holds D-ring in place under SRL-P load for safer attachment.
- 9kV-rated dielectric overmolded alloy steel hardware insulates against electrical hazards.
- Comfort Legs� lateral straps provide mobility and comfort away from pinch points.
- Four lanyard parking points with rugged keepers and a protective Nomex� label cover.
- Kevlar�-reinforced Nomex� webbing resists arc flash across shoulders, waist, and legs.
- Ripstop, quilted padding sealed in arc-resistant Nomex� enhances comfort and protection.
- Arc-rated trauma relief packs reduce pressure and improve balance during suspension rescue.
- Complies with ASTM F887, ANSI Z359.11-2021, OSHA 1910.140 and 1926.502.
Specifications
- Configuration: Belted Full Body Harness
- 6 D-Rings: Dorsal, Hip, Sternal, Suspension
- Quick-Connect Leg Adjustment
- Webbing: Nomex�/Kevlar�; 5,000 lb min. static strength
- D-rings: Overmolded Alloy Steel; 5,000 lb min. static strength
- Buckles and Adjusters: Overmolded Alloy Steel; 3,372 lb min. static strength
- Seat: Carbon fiber composite, aluminum alloy, and Nomex�/Kevlar�; 3,600 lb min. static strength
- Static Strength: 3,600 lb min.
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 425 lb max.
- D-Rings: 6
- Leg Connection: QC
- Weight: 10 / 10.5 lb
Standards & Compliance
- ANSI Z359.11-2021
- OSHA 1926.502 and 1910.140
- CSA Z259.10-2018
- ANSI Compliant
- OSHA Compliant
- CSA Compliant
Resources
