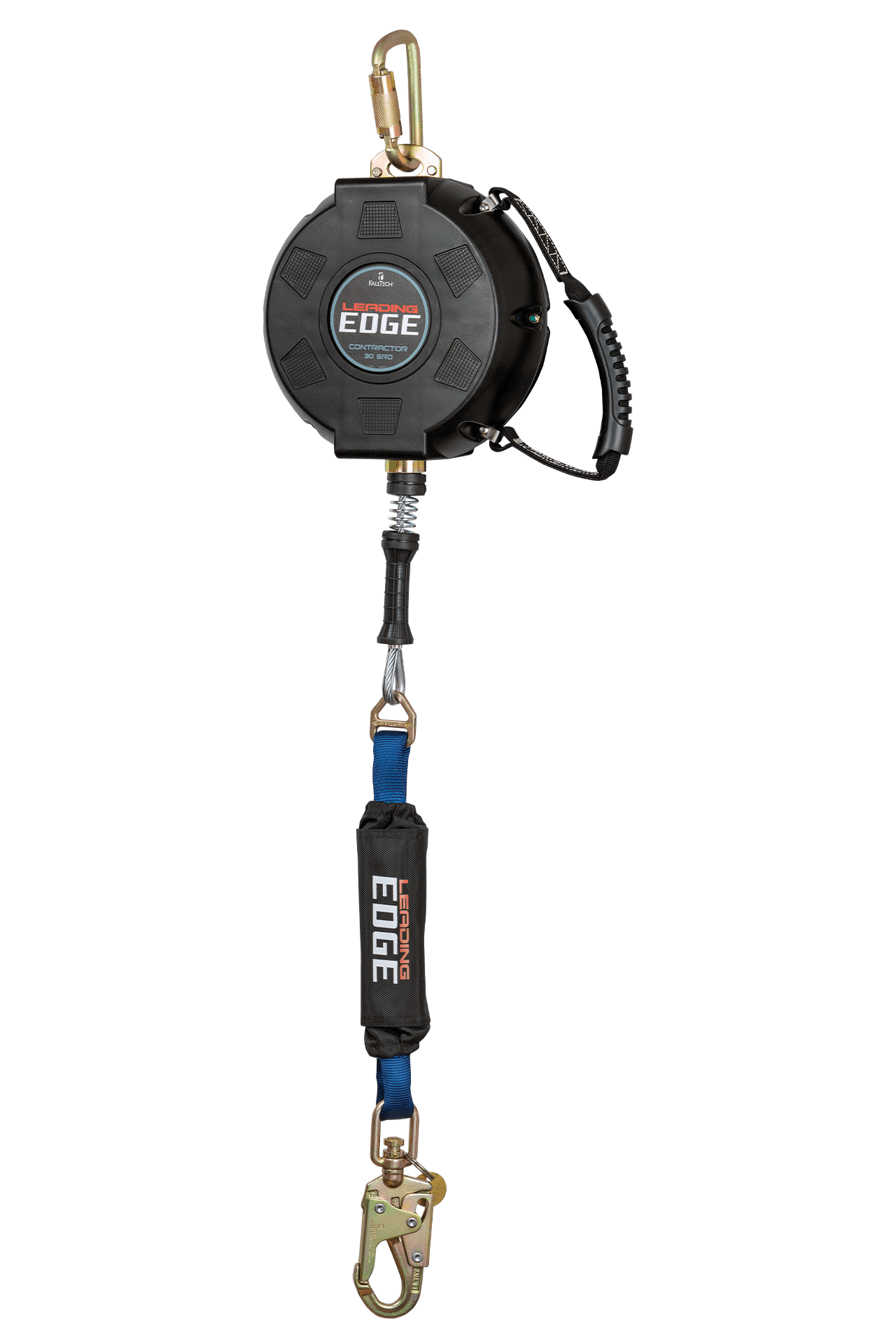

The Contractor Class 2 SRL is built for the toughest jobs�delivering rock-solid reliability with a proven steel cable lifeline and performance-tested braking system.�Made for leading-edge environments, it gives you the freedom to anchor at, above, or up to 5 feet below your D-ring�your choice, no compromises.
Features
- 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
- Internal inertial braking system provides positive stopping action and uniform deceleration.
- Integrated external ViewPack� energy absorber strengthens the braking system and preserves lifeline integrity
- Durable glass-filled nylon housing extends service life
- Integrated lifeline hand-grip simplifies dorsal connection and recoil spring helps prevent lifeline lock-up
- Load-indicating snap hook provides visual fall event indication
- Complies with ANSI Z359.14-2021 Class 2 SRL. <a href="https://www.falltech.com/blog/industry-news-updates/what-you-should-know-to-comply-with-the-updated-srd-standard">Learn more and download White Paper</a>
Specifications
- Configuration: Class 2 Leading Edge SRL
- Steel Swivel Snap Hook
- Galvanized Steel Wire Rope Lifeline
- Cable: 7/32" galvanized steel; 3,600 lb min. static strength
- Energy Absorber: Polyester tear-away
- Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Static Strength: 3,600 lb min.
- ANSI SRL Class/Type: Class 2 SRL
- Avg. Arrest Force: 1,350 lb
- Max. Arrest Force: 1,800 lb
- Max. Arrest Distance: 42"
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 310 lb max.
- SRL ANSI Class: 2
- SRL Length: 30'
- Weight: 20 lb
Standards & Compliance
- ANSI Z359.14-2021
- OSHA 1926.502 and 1910.66
- CSA Z259.2.2-2017
- ANSI Class 2 SRL Compliant
- OSHA Compliant
- CSA Compliant
