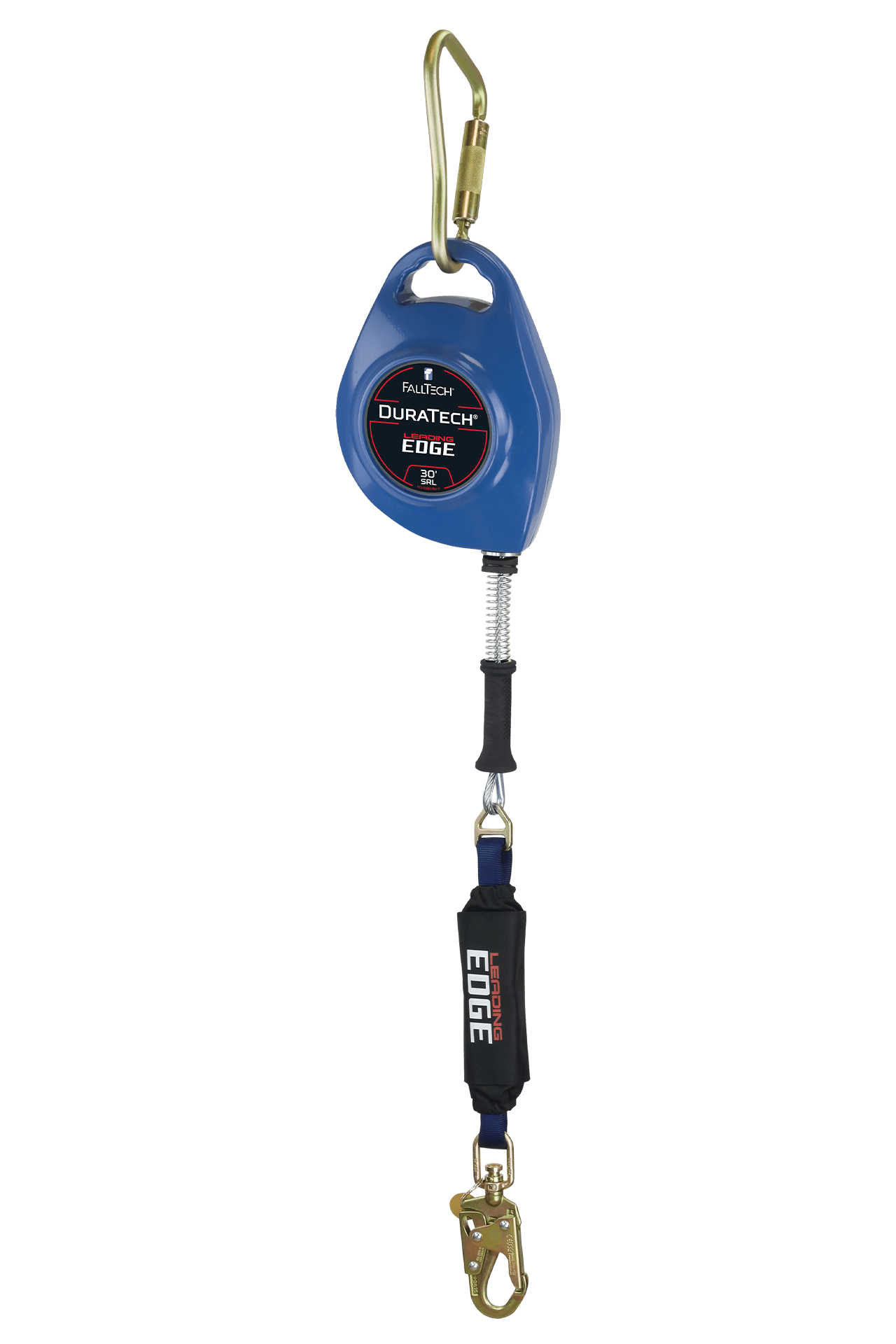

Engineered for demanding leading edge and below-D-ring applications, this Class 2 SRL combines a durable galvanized steel cable lifeline with an external energy absorber for controlled fall arrest performance. Its compact, stackable housing and lightweight aluminum components help improve mobility, reduce bulk, and support all-day productivity in challenging work environments.
Features
- 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
- Internal inertial braking system with dual disc brakes provides superior deceleration.
- Integrated external ViewPack� energy absorber enhances braking system and preserves lifeline integrity
- Side-payout housing design and lifeline recoil spring deliver smooth operation and help reduce nuisance lock-up
- Integrated lifeline hand-grip simplifies dorsal connection
- Stackable aluminum housing design and handle provide easy installation and storage
- Includes extra large anchorage carabiner with 2-1/4" gate opening
- Complies with ANSI Z359.14-2021 Class 2 SRL. <a href="https://www.falltech.com/blog/industry-news-updates/what-you-should-know-to-comply-with-the-updated-srd-standard">Learn more and download White Paper</a>
Specifications
- Configuration: Class 2 Leading Edge SRL
- Steel Swivel Snap Hook
- Galvanized Steel Wire Rope Lifeline
- Cable: 7/32" galvanized steel; 3,600 lb min. static strength
- Energy Absorber: Polyester tear-away
- Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
- Static Strength: 3,600 lb min.
- ANSI SRL Class/Type: Class 2 SRL
- Avg. Arrest Force: 1,350 lb
- Max. Arrest Force: 1,800 lb
- Max. Arrest Distance: 42"
- ANSI User Capacity: 130 to 310 lb max.
- OSHA User Capacity: 130 to 310 lb max.
- SRL ANSI Class: 2
- SRL Length: 30'
- Weight: 21 lb
Standards & Compliance
- ANSI Z359.14-2021
- OSHA 1926.502 and 1910.66
- ANSI Class 2 SRL Compliant
- OSHA Compliant
