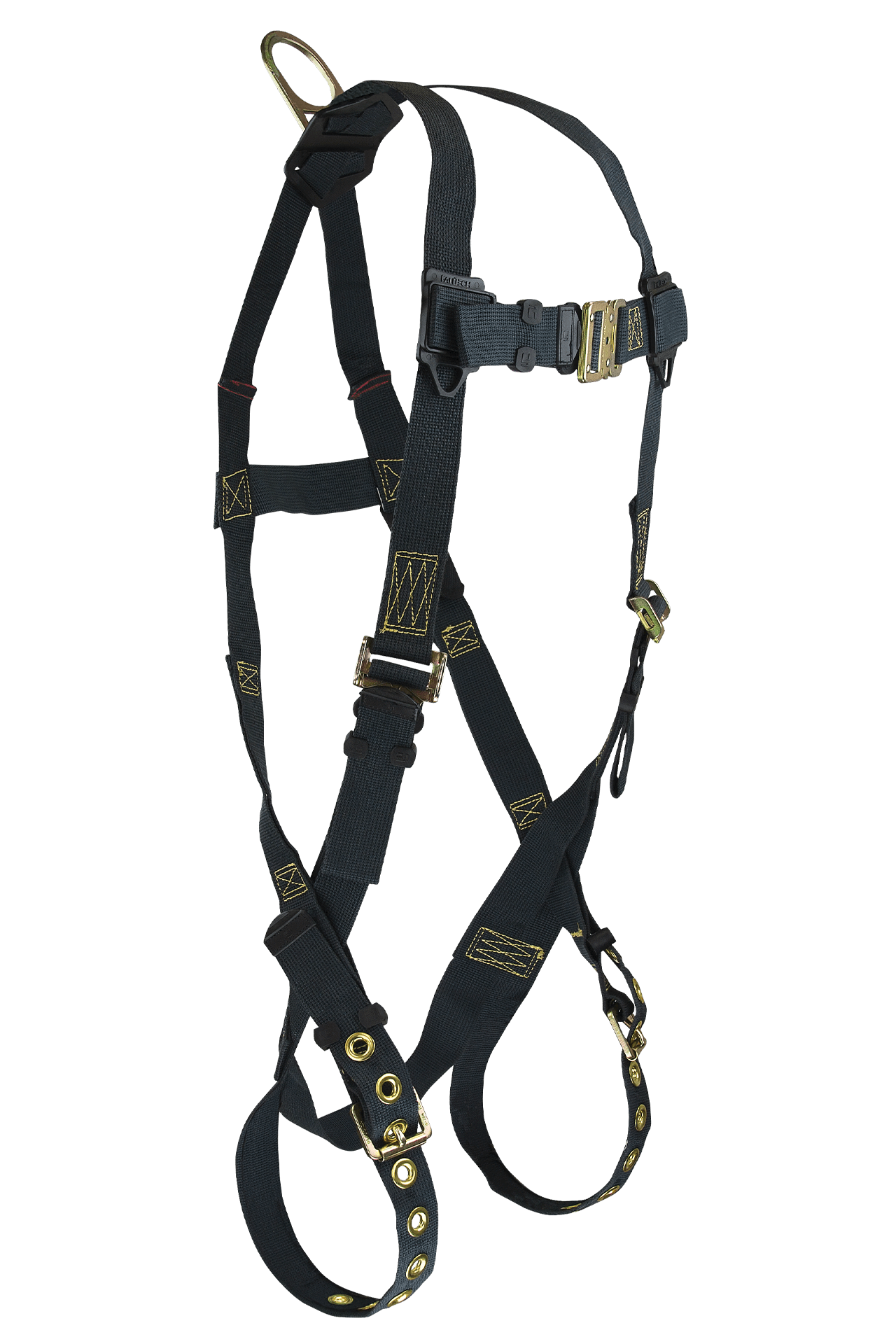

WeldTech� 1D Standard Kevlar� Non-belted Full Body Harness, Tongue Buckle Leg Adjustment

Built for welding, hot-work, and high-heat environments, this Kevlar full-body harness combines flame-resistant durability with dependable all-day comfort. A friction roller chest D-ring, quick-connect chest buckle, and tongue-buckle leg straps help improve fit, mobility, and ease of use in demanding applications.

Features

• Features Kevlar� webbing throughout shoulders, torso, and legs
• Kevlar� webbing delivers the highest level of burn and spatter resistance common in hot-work welding applications.
• Uniquely grommeted Kevlar� leg straps feature 9 adjustment positions for an expanded range of fit
• Friction roller torso adjusters provide simple upper-body adjustment
• D-ring, quick connect chest, and tongue buckle leg closures are all durably finished with plated alloy steel construction
• Quick-connect buckle features visual indicators showing positive connection
• Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
• Complies with ANSI Z359.11-2014

Specifications

• Configuration: Non-Belted Full Body Harness
• 1 D-Ring: Dorsal
• Tongue Buckle Leg Adjustment
• Webbing: Kevlar�; 5,000 lb min. static strength
• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Buckles and Adjusters: Plated alloy steel; 3,372 lb min. static strength
• Static Strength: 3,600 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.
• D-Rings: 1
• Leg Connection: TB
• Weight: 3.6 lb

Standards & Compliance

• ANSI Z359.11-2021
• OSHA 1926.502 and 1910.140
• CSA Z259.10-2018
• ANSI Compliant
• OSHA Compliant
• CSA Compliant

Resources

• Instruction Manual
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)

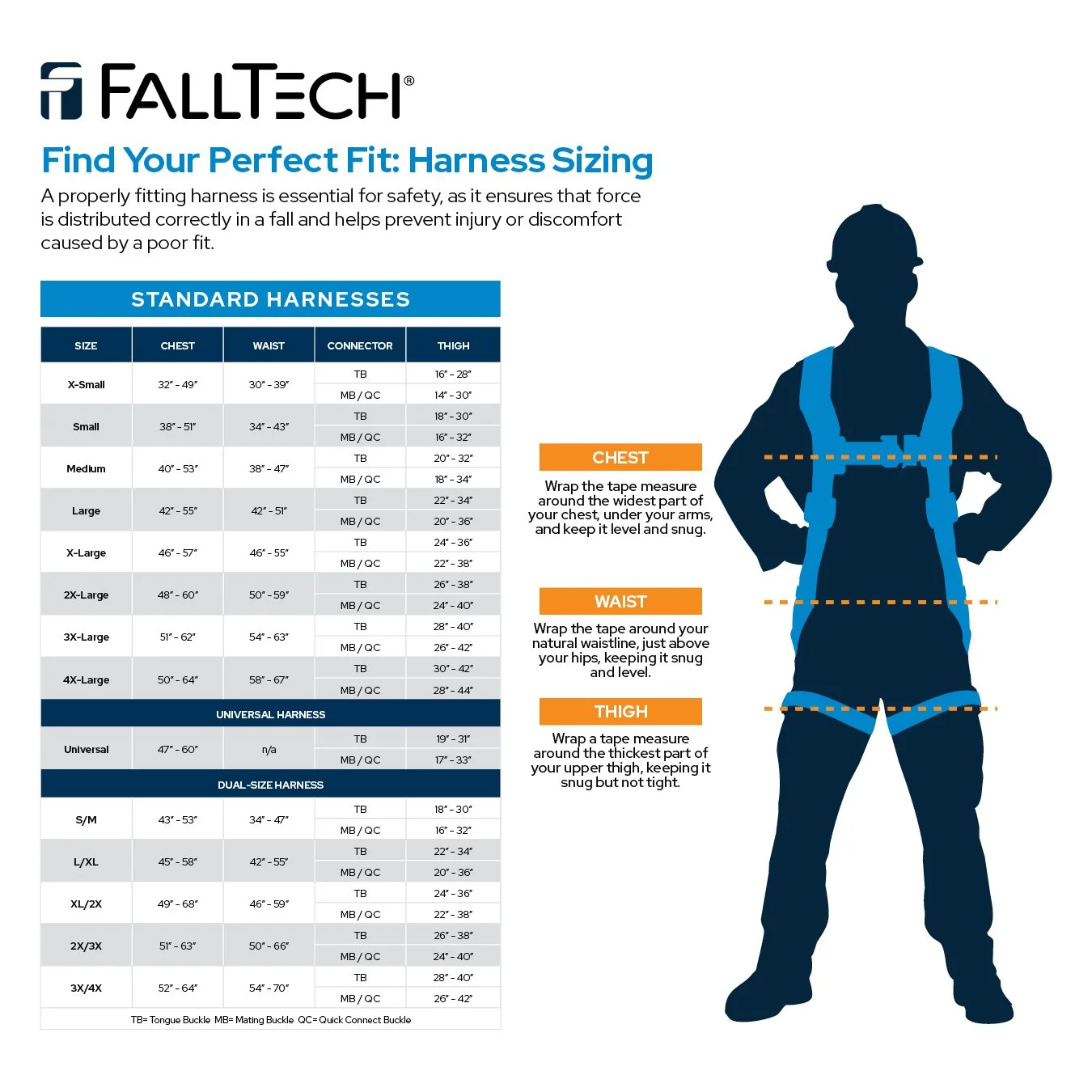

• Sizing Chart
